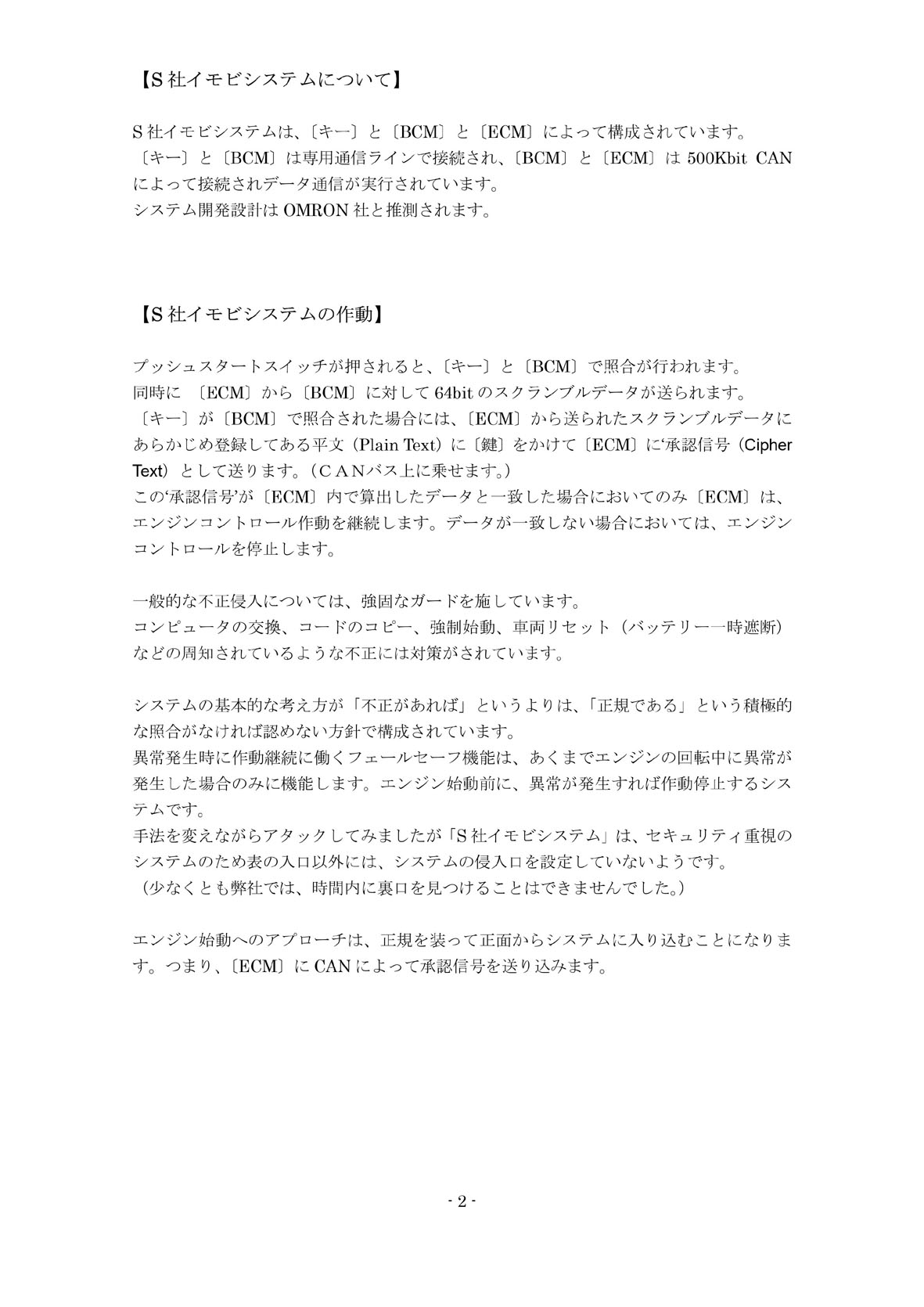

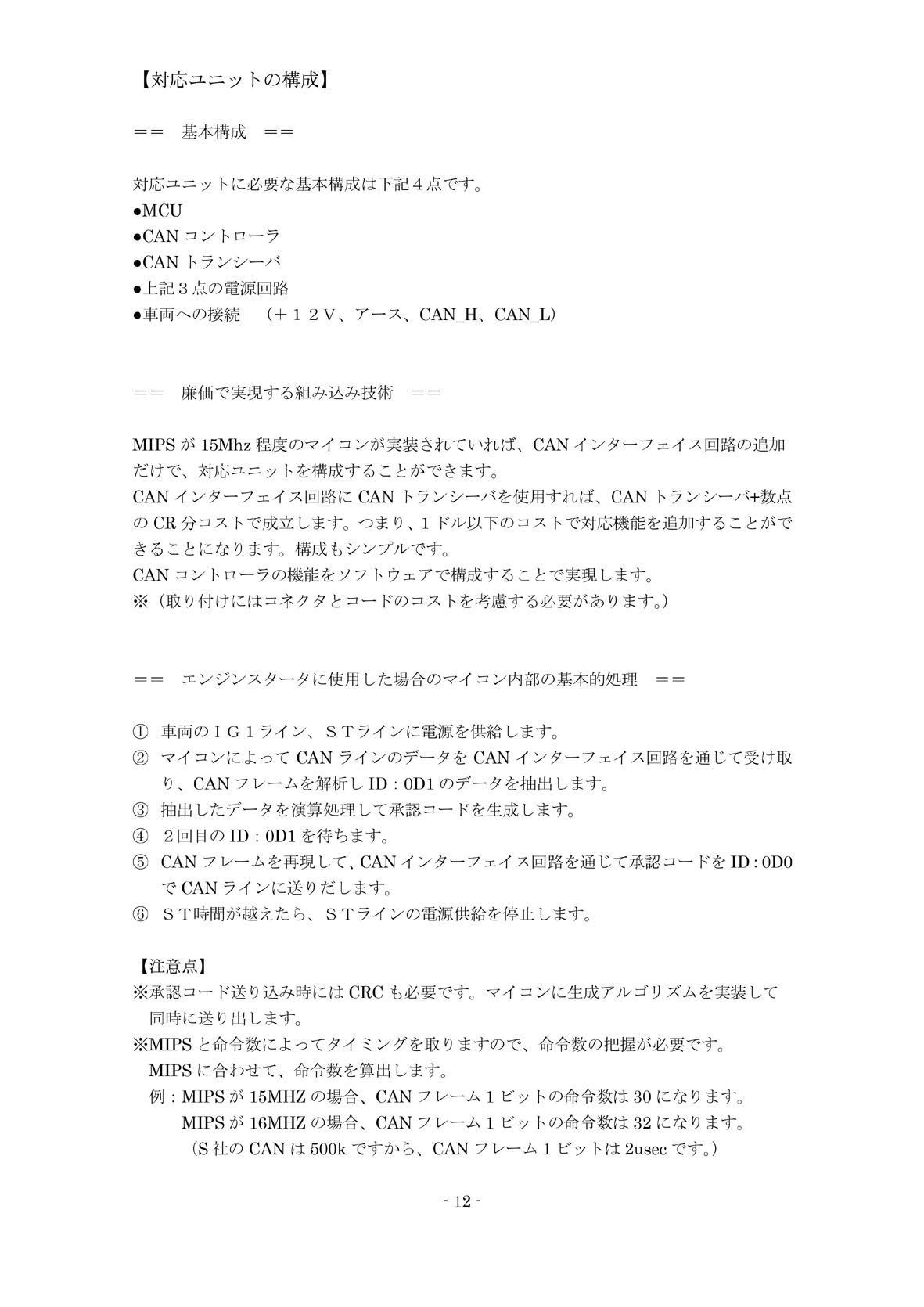

;Immobilizer_release制御プログラム 2011/1/12
;=============================================================================
;**** Define
Processo
;
LIST
P=18F23K20
INCLUDE
P18F13K22.INC
;;****
Configurations
40MHz PLL mode HFINTOSC
CONFIG
FOSC=HS, PLLEN = ON ,IESO=OFF, PWRTEN=ON, BOREN=ON,
BORV=30, WDTEN=OFF, WDTPS=256, MCLRE = OFF
CONFIG
CP0=ON, CP1=ON, CPB=ON, CPD=OFF
CONFIG
WRT0=ON, WRT1=ON, WRTB=ON, WRTC=ON
CONFIG
WRTD=OFF, EBTR0=ON, EBTR1=ON, EBTRB=ON
;PORTA,2
IN
UN_LOCK
;PORTC,0
IN
LOCK
;PORTC,1
IN
IG
;PORTC,2
ACC
;PORTB,4
IG1
;PORTB,5
IG2
(実車ではST時はカットされている）
;PORTB,6
ST
;PORTB,7
LED
;PORTC,5
CAN/OUT
;PORTC,4
CAN_IN
;**** ID Location
__IDLOCS
_IDLOC0,H'2'
__IDLOCS
_IDLOC1,H'0'
__IDLOCS
_IDLOC2,H'1'
__IDLOCS
_IDLOC3,H'1'
__IDLOCS
_IDLOC4,H'0'
__IDLOCS
_IDLOC5,H'6'
__IDLOCS
_IDLOC6,H'1'
__IDLOCS
_IDLOC7,H'1'
;**** Define
Variables
CBLOCK
0x000
TEST_CNT
CNT1
;Timer counter
CNT2
CNT3
CNT4
CNT5
SETTEI_CNT
EEADR_CNT
ID_LOW
ID_HI
ID_LOW_0
ID_HI_0
ID_HI_CHK_CNT
ID_LOW_CHK_CNT
L_5bit_CHK
H_5bit_CHK
RTR_RB0_RB1
DLC
DLC_0
RTR_RB0_RB1_BIT_CNT
DLC_BIT_CNT
DATA_X
DATA_1
DATA_2
DATA_3
DATA_4
DATA_5
DATA_6
DATA_7
DATA_8
CRC_DATA_1
CRC_DATA_2
DATA_1_0
DATA_2_0
DATA_3_0
DATA_4_0
DATA_5_0
DATA_6_0
DATA_7_0
DATA_8_0
DATAX_1_0
DATAX_2_0
DATAX_3_0
DATAX_4_0
DATAX_5_0
DATAX_6_0
DATAX_7_0
DATAX_8_0
plaintext_DATA_1
plaintext_DATA_2
plaintext_DATA_3
plaintext_DATA_4
plaintext_DATA_5
plaintext_DATA_6
plaintext_DATA_7
plaintext_DATA_8
Reproduce_DATA1
Reproduce_DATA2
Reproduce_DATA3
Reproduce_DATA4
Reproduce_DATA5
Reproduce_DATA6
Reproduce_DATA7
Reproduce_DATA8
DATA_1_CNT
DATA_2_CNT
DATA_3_CNT
DATA_4_CNT
DATA_5_CNT
DATA_6_CNT
DATA_7_CNT
DATA_8_CNT
CRC_DATA_1_CNT
CRC_DATA_2_CNT
CRC_X
CRC_L
CRC_L_X
CRC_H
CRC_H_X
Reproduce_CRC_L
Reproduce_CRC_H
DATA_BIT_CNT
BIT_CNT
HI_BIT_CNT
LOW_BIT_CNT
SADOU_PORT
_0D1_CNT
ST_CNT
ON_CNT
FULL_END_CNT
W_TEMP
S_TEMP
TIMER_CNT
CAN_CHK_CNT
ID_0D_CNT
ENDC
;**** EEPROM WRITE
ORG
0xF00000
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
DE
H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00',H'00'
;
;******************************************
ORG
0
GOTO
START
;******************************************
;=============================================================
T_10u
MOVLW
D'37'
MOVWF
CNT1
T_10u_LP
CLRWDT
DECFSZ
CNT1,F
;2+4*37-1+2=151
GOTO
T_10u_LP
RETURN
;151*0.067=10usec
T_100u
MOVLW
D'10'
MOVWF
CNT2
T_100u_LP
CALL
T_10u
DECFSZ
CNT2,F
GOTO
T_100u_LP
RETURN
TIME1M
MOVLW
D'100'
MOVWF
CNT2
TIME1_LP
CALL
T_10u
DECFSZ
CNT2,F
GOTO
TIME1_LP
RETURN
TIME10M
MOVLW
D'10'
MOVWF
CNT3
TIME10M_LP
CALL
TIME1M
DECFSZ
CNT3,F
GOTO
TIME10M_LP
RETURN
TIME20M
MOVLW
D'20'
MOVWF
CNT3
TIME20M_LP
CALL
TIME1M
DECFSZ
CNT3,F
GOTO
TIME20M_LP
RETURN
TIME100M
MOVLW
D'100'
MOVWF
CNT3
TIME100M_LP
CALL
TIME1M
DECFSZ
CNT3,F
GOTO
TIME100M_LP
RETURN
TIME0.5S
MOVLW
D'5'
MOVWF
CNT4
TIME0.5S_LP
CALL
TIME100M
DECFSZ
CNT4,F
GOTO
TIME0.5S_LP
RETURN
TIM1S
MOVLW
D'10'
MOVWF
CNT4
TIM1S_LP
CALL
TIME100M
DECFSZ
CNT4,F
GOTO
TIM1S_LP
RETURN
TIME2S
MOVLW
D'20'
MOVWF
CNT4
TIME2S_LP
CALL
TIME100M
DECFSZ
CNT4,F
GOTO
TIME2S_LP
RETURN
TIME5S
MOVLW
D'50'
MOVWF
CNT4
TIME5S_LP
CALL
TIME100M
DECFSZ
CNT4,F
GOTO
TIME5S_LP
RETURN
;******************************************************************
CYCLE_30
NOP
;30
CYCLE_29
NOP
;29
CYCLE_28
NOP
;28
CYCLE_27
NOP
;27
CYCLE_26
NOP
;26
CYCLE_25
NOP
;25
CYCLE_24
NOP
;24
CYCLE_23
NOP
;23
CYCLE_22
NOP
;22
CYCLE_21
NOP
;21
CYCLE_20
NOP
;20
CYCLE_19
NOP
;19
CYCLE_18
NOP
;18
CYCLE_17
NOP
;17
CYCLE_16
NOP
;16
CYCLE_15
NOP
;15
CYCLE_14
NOP
;14
CYCLE_13
NOP
;13
CYCLE_12
NOP
;12
CYCLE_11
NOP
;11
CYCLE_10
NOP
;10
CYCLE_9
NOP
;9
CYCLE_8
NOP
;8
CYCLE_7
NOP
;7
CYCLE_6
NOP
;6
CYCLE_5
NOP
;5
CYCLE_4
NOP
;4
CYCLE_3
NOP
;3
CYCLE_2
RETURN
;1,2
CYCLE_12_H
NOP
BTFSS
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
BTFSS
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
BTFSS
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
RETURN
;(2)
2*5+2=12
CYCLE_12_L
NOP
BTFSC
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
BTFSC
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
BTFSC
PORTC,4
;skip(2)
GOTO
CYCLE_HENKA
RETURN
;(2)
2*5+2=12
CYCLE_HENKA
RETURN
;(2)
2+2=4
その前の判断で+3 =7
;ここには5回連続して同ビットが検出された時にｽﾀｯﾌﾋﾞｯﾄ処理のためにくる
H_5bit_
;Hビットが5回連続したﾋﾞｯﾄｽﾀｯﾌの対応
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
BTFSS
PORTC,4
;(1)
GOTO
H_5bit_1
;(2)
GOTO
EOF_CHK_0
H_5bit_1
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
MOVLW
D'4'
;(1)
MOVWF
L_5bit_CHK
;(1)
CALL
CYCLE_12
RETURN
;(2)
21+2
L_5bit_
;Lビットが5回連続したﾋﾞｯﾄｽﾀｯﾌの対応
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
BTFSC
PORTC,4
;(1)
GOTO
L_5bit_1
;(2)
GOTO
EOF_CHK_0
L_5bit_1
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
MOVLW
D'4'
;(1)
MOVWF
H_5bit_CHK
;(1)
CALL
CYCLE_12
RETURN
;(2)
23
;**************************************
EE_REED
MOVF
EEADR_CNT,W ;
MOVWF
EEADR
; Data Memory Address to write
BCF
EECON1,EEPGD
; Point to DATA memory
BCF
EECON1,CFGS
BSF
EECON1,RD
; EEPROM Read
MOVF
EEDATA,W
; W = EEDATA
MOVWF
SETTEI_CNT
RETURN
;**************************************
EE_WRITE
MOVF
EEADR_CNT,W
;
MOVWF
EEADR
; Data Memory Address to write
MOVF
SETTEI_CNT,W
;
MOVWF
EEDATA
; Data Memory Value to write
BCF
EECON1,EEPGD
; Point to DATA memory
BCF
EECON1,CFGS
; Access EEPROM
BSF
EECON1,WREN
; Enable writes
BCF
INTCON,GIE
; Disable Interrupts
MOVLW
55h ;
Required
MOVWF
EECON2
; Write 55h
Sequence
MOVLW
0AAh ;
MOVWF
EECON2
; Write 0AAh
BSF
EECON1,WR
; Set WR bit to begin write
BTFSC
EECON1,WR
;完了待ち
BRA
$-2
BSF
INTCON,GIE
; Enable Interrupts
; User
code execution
BCF
EECON1, WREN
; Disable writes on write complete (EEIF set)
RETURN
;*********************************************************************************************************
;*********************************************************************************************************
START
;PORTA,2
IN
UN_LOCK
;PORTC,0
IN
LOCK
;PORTC,1
IN
IG
BANKSEL
ANSELH
MOVLW
B'00000000'
; anarog
MOVWF
ANSELH;
CLRF
ANSELH ;
MOVLW
B'00001010'
; anarog
MOVWF
ANSEL;
MOVLW
B'00000100'
; OUTput
MOVWF
TRISA
;
MOVLW
B'00000000'
;RB0 OUTput
MOVWF
TRISB
MOVLW
B'00010011'
;OUTput
MOVWF
TRISC
;
MOVLW
B'10111001'
;
MOVWf
CM1CON0
CLRF
EEADR_CNT
CLRF
SADOU_PORT
MOVLW
D'0'
;(1)
MOVWF
ID_0D_CNT
BSF
SWDTEN,0
CALL
TIME100M
;
RE_START
MOVLW
H'00'
;
MOVWF
FSR0H
MOVLW
H'00'
MOVWF
FSR0L
RAM_CLR
CLRF
INDF0
INCFSZ
FSR0L,F
GOTO
RAM_CLR
CLRF
PORTA
NOP
CLRF
PORTB
NOP
CLRF
PORTC
NOP
MOVLW
H'00'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
SADOU_PORT
MOVLW
H'01'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_1
MOVLW
H'02'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_2
MOVLW
H'03'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_3
MOVLW
H'04'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_4
MOVLW
H'05'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_5
MOVLW
H'06'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_6
MOVLW
H'07'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_7
MOVLW
H'08'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
plaintext_DATA_8
MOVLW
H'0E'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
ON_CNT
MOVLW
H'0F'
MOVWF
EEADR_CNT
CALL
EE_REED
MOVF
SETTEI_CNT,W ;
MOVWF
FULL_END_CNT
BTFSC
FULL_END_CNT,0
GOTO
FULL_CNT_STOP
INCF
ON_CNT,F
;30回を越えたら停止
MOVLW
D'30'
SUBWF
ON_CNT,W
BTFSC
STATUS,Z
GOTO
FULL_CNT_STOP
MOVLW
H'0E'
MOVWF
EEADR_CNT
MOVF
ON_CNT,W
MOVWF
SETTEI_CNT
CALL
EE_WRITE
Main
CLRF
_0D1_CNT
CLRWDT
CLRF
T0CON
BTFSS
SADOU_PORT,0
;
平文の記憶
GOTO
EOF_CHK_0
;******************************************************************
EOF_CHK_0
;検出サイクルの精度のため、スタートビットの検出前に各セットを行っておく
;ＩＤのHi/Lowビット数の組み合わせ （合わせて１１ビットになるように）
CLRWDT
BSF
PORTC,5
BCF
PORTB,7
;LED
平文の記憶がまだならLED点灯
BTFSS
SADOU_PORT,0
BSF
PORTB,7
;LED 消灯していれば記憶している
BTFSS
PORTA,3
GOTO
RE_SET
MOVLW
D'3'
;
MOVWF
HI_BIT_CNT
;ID/Hi
MOVWF
RTR_RB0_RB1_BIT_CNT
MOVLW
D'4'
;
MOVWF
DLC_BIT_CNT
MOVLW
D'5'
;
MOVWF
H_5bit_CHK
;
MOVLW
D'4'
;注意
ＳＯＦでHﾋﾞｯﾄを消費するので５−１
MOVWF
L_5bit_CHK
;
MOVLW
D'8'
;
MOVWF
LOW_BIT_CNT
;ID/Low
MOVWF
DATA_1_CNT
MOVWF
DATA_2_CNT
MOVWF
DATA_3_CNT
MOVWF
DATA_4_CNT
MOVWF
DATA_5_CNT
MOVWF
DATA_6_CNT
MOVWF
DATA_7_CNT
MOVWF
DATA_8_CNT
MOVWF
CRC_DATA_1_CNT
MOVWF
CRC_DATA_2_CNT
;IDクリア
CLRF
ID_LOW
CLRF
ID_HI
CLRF
RTR_RB0_RB1
CLRF
DLC
CLRF
DATA_1
CLRF
DATA_2
CLRF
DATA_3
CLRF
DATA_4
CLRF
DATA_5
CLRF
DATA_6
CLRF
DATA_7
CLRF
DATA_8
CLRF
CRC_DATA_1
CLRF
CRC_DATA_2
EOF_CHK
MOVLW
D'9'
;終了の連続ビット CAN-Bでは7ビット以上 初回の1ビットは検出で消費
MOVWF
BIT_CNT
EOF_CHK_LP
BTFSS
PORTC,4
;(2)
GOTO
EOF_CHK_LP
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
NOP
;ここまでで15
EOF_CHK_2
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
BTFSS
PORTC,4
;(2)
GOTO
EOF_CHK
NOP
;(1)
DECFSZ
BIT_CNT,F
;(1)
GOTO
EOF_CHK_2
;(2)
;******************************************************************
;スタートビットの検出
;******************************************************************
SOF_CHK_0
SOF_CHK
BTFSC
PORTC,4
;(2)
GOTO
SOF_CHK
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
BTFSC
PORTC,4
;(2)
GOTO
SOF_CHK
NOP
NOP
NOP
NOP
NOP
NOP
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
CALL
CYCLE_10
;(12)CYCLE_10+CALL(2)=12CYCLE
ここまでで(48）
;******************************************************************
;ＩＤ／Ｈｉの検出 注意 IDコードがBENZに対して反転
;******************************************************************
ID_HI_CHK
;ID_HI_CHK - IDH_1bit_END(30)
NOP
NOP
RLCF
ID_HI,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2) 1 2
15/30目をチェック
GOTO
ID_HI_L
;(2)
ID_HI_H
NOP
;(1)3
BSF
ID_HI,0
;(1)4
MOVLW
D'5'
;(1)5
MOVWF
L_5bit_CHK
;(1)6
DECFSZ
H_5bit_CHK,F
;(1) skip(2)7
GOTO
ID_HI_H_1bit_END
;(2)8 9
CALL
H_5bit_
;(2)
ID_HI_H_1bit_END
CALL
CYCLE_12_H
;(14)CYCLE_12+CALL(2)=14CYCLE
24
DECF
HI_BIT_CNT,F
;(1) 25
BZ
ID_HI_CHK_END
;(1) GOTO(2) 26
NOP
;(1) 27
NOP
;(1) 28
GOTO
ID_HI_CHK
;(2)
30
ID_HI_L
BCF
ID_HI,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
ID_HI_L_1bit_END
;(2)
CALL
L_5bit_
;(2)
ID_HI_L_1bit_END
CALL
CYCLE_12_L
;(17)CYCLE_12+CALL(2)=15CYCLE
DECF
HI_BIT_CNT,F
;(1) 25
BZ
ID_HI_CHK_END
;(1) GOTO(2) 26
NOP
;(1) 27
NOP
;(1) 28
GOTO
ID_HI_CHK
;(2)
30
ID_HI_CHK_END
MOVLW
H'00'
;(1)
SUBWF
ID_HI,W
;(1)
BTFSS
STATUS,Z
;(2)
GOTO
EOF_CHK_0
;******************************************************************
;ＩＤ／ＬＯＷの検出
;******************************************************************
ID_LOW_CHK
;ID_LOW_CHK - IDLOW1bit_END(30)
NOP
NOP
RLCF
ID_LOW,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
ID_LOW_L
;(2)
ID_LOW_H
NOP
;(1)
BSF
ID_LOW,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
ID_LOW_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
ID_LOW_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
LOW_BIT_CNT,F
;(1)
BZ
ID_LOW_CHK_END
;(1) GOTO(2)
NOP
;(1)
NOP
;(1)
GOTO
ID_LOW_CHK
;(2)
ID_LOW_L
BCF
ID_LOW,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
ID_LOW_L_1bit_END
;(2)
CALL
L_5bit_
;(2)
ID_LOW_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
LOW_BIT_CNT,F
;(1)
BZ
ID_LOW_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
ID_LOW_CHK
;(2)
;↑↑↑↑ここまででＩＤの取り出し終了↑↑↑↑

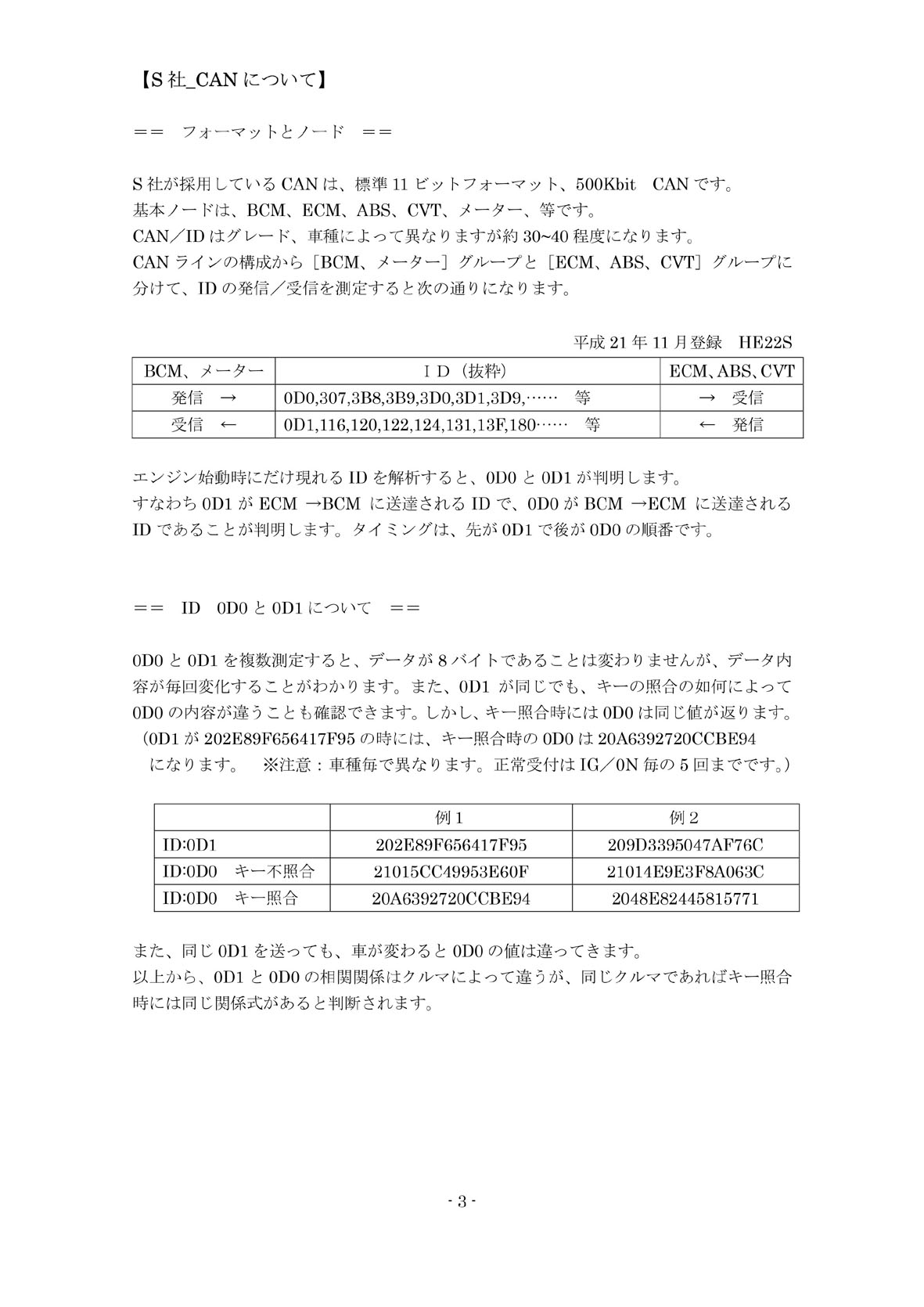

ID_LOW_CHK_END
;
MOVLW
H'D1'
;(1)
;
SUBWF
ID_LOW,W
;(1)
;
BTFSS
STATUS,Z
;(2)
;
GOTO
EOF_CHK_0
NOP
NOP
NOP
;↑↑↑↑ここでＩＤ解析のみチェック↑↑↑↑ 2サイクル
;******************************************************************
;RTR_RB0_RB1の通過
;******************************************************************
RTR_RB0_RB1_CHK
;RTR_RB0_RB1_CHK - RTR_RB0_RB11bit_END(30)
NOP
NOP
RLCF
RTR_RB0_RB1,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
RTR_RB0_RB1_L
;(2)
RTR_RB0_RB1_H
NOP
;(1)
BCF
RTR_RB0_RB1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
RRR_LOW_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
RRR_LOW_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
RTR_RB0_RB1_BIT_CNT,F
;(1)
BZ
RTR_RB0_RB1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
RTR_RB0_RB1_CHK
;(2)
RTR_RB0_RB1_L
BSF
RTR_RB0_RB1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
RRR_LOW_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
RRR_LOW_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
RTR_RB0_RB1_BIT_CNT,F
;(1)
BZ
RTR_RB0_RB1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
RTR_RB0_RB1_CHK
;(2)
RTR_RB0_RB1_CHK_END
NOP
NOP
NOP
;******************************************************************
;DLC
の通過
;******************************************************************
DLC_CHK
;DLC_CHK - DLC1bit_END(30)
NOP
NOP
RLCF
DLC,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DLC_L
;(2)
DLC_H
NOP
;(1)
BSF
DLC,0
;(1)
※NOT_BSF
注意 DLCは1111で0バイト0xxxで8バイト
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DLC_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DLC_H_1bit_END
CALL
CYCLE_12_H
;(14)CYCLE_12+CALL(2)=14CYCLE
DECF
DLC_BIT_CNT,F
;(1)
BZ
DLC_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DLC_CHK
;(2)
;(2)
DLC_L
BCF
DLC,0
;(1)※NOT_BCF
注意 DLCは1111で0バイト0xxxで8バイト
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DLC_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DLC_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DLC_BIT_CNT,F
;(1)
BZ
DLC_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DLC_CHK
;(2)
DLC_CHK_END
NOP
NOP
NOP
;******************************************************************
;データーの検出
;******************************************************************
DATA_CHK
MOVF
DLC,W
;DLCは、データーのバイト数
MOVWF
DATA_BIT_CNT
DATA_1_CHK
;DATA_1_CHK - DATA_11bit_END(30)
NOP
NOP
RLCF
DATA_1,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_1_L
;(2)
DATA_1_H
NOP
;(1)
BSF
DATA_1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_1_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_1_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_1_CNT,F
;(1)
BZ
DATA_1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_1_CHK
;(2)
DATA_1_L
BCF
DATA_1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_1_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_1_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_1_CNT,F
;(1)
BZ
DATA_1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_1_CHK
;(2)
DATA_1_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_2_CHK
GOTO
DATA_ALL_CHK_END
DATA_2_CHK
;DATA_2_CHK - DATA_21bit_END(30)
NOP
NOP
RLCF
DATA_2,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_2_L
;(2)
DATA_2_H
NOP
;(1)
BSF
DATA_2,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_2_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_2_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_2_CNT,F
;(1)
BZ
DATA_2_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_2_CHK
;(2)
DATA_2_L
BCF
DATA_2,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_2_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_2_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_2_CNT,F
;(1)
BZ
DATA_2_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_2_CHK
;(2)
DATA_2_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_3_CHK
GOTO
DATA_ALL_CHK_END
DATA_3_CHK
;DATA_3_CHK - DATA_31bit_END(30)
NOP
NOP
RLCF
DATA_3,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_3_L
;(2)
DATA_3_H
NOP
;(1)
BSF
DATA_3,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_3_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_3_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_3_CNT,F
;(1)
BZ
DATA_3_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_3_CHK
;(2)
DATA_3_L
BCF
DATA_3,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_3_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_3_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_3_CNT,F
;(1)
BZ
DATA_3_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_3_CHK
;(2)
DATA_3_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_4_CHK
GOTO
DATA_ALL_CHK_END
DATA_4_CHK
;DATA_4_CHK - DATA_41bit_END(30)
NOP
NOP
RLCF
DATA_4,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_4_L
;(2)
DATA_4_H
NOP
;(1)
BSF
DATA_4,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_4_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_4_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_4_CNT,F
;(1)
BZ
DATA_4_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_4_CHK
;(2)
DATA_4_L
BCF
DATA_4,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_4_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_4_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_4_CNT,F
;(1)
BZ
DATA_4_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_4_CHK
;(2)
DATA_4_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_5_CHK
GOTO
DATA_ALL_CHK_END
DATA_5_CHK
;DATA_5_CHK - DATA_51bit_END(30)
NOP
NOP
RLCF
DATA_5,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_5_L
;(2)
DATA_5_H
NOP
;(1)
BSF
DATA_5,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_5_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_5_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_5_CNT,F
;(1)
BZ
DATA_5_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_5_CHK
;(2)
DATA_5_L
BCF
DATA_5,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_5_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_5_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_5_CNT,F
;(1)
BZ
DATA_5_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_5_CHK
;(2)
DATA_5_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_6_CHK
GOTO
DATA_ALL_CHK_END
DATA_6_CHK
;DATA_6_CHK - DATA_61bit_END(30)
NOP
NOP
RLCF
DATA_6,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_6_L
;(2)
DATA_6_H
NOP
;(1)
BSF
DATA_6,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_6_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_6_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_6_CNT,F
;(1)
BZ
DATA_6_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_6_CHK
;(2)
DATA_6_L
BCF
DATA_6,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_6_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_6_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_6_CNT,F
;(1)
BZ
DATA_6_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_6_CHK
;(2)
DATA_6_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_7_CHK
GOTO
DATA_ALL_CHK_END
DATA_7_CHK
;DATA_7_CHK - DATA_71bit_END(30)
NOP
NOP
RLCF
DATA_7,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_7_L
;(2)
DATA_7_H
NOP
;(1)
BSF
DATA_7,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_7_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_7_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_7_CNT,F
;(1)
BZ
DATA_7_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_7_CHK
;(2)
DATA_7_L
BCF
DATA_7,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_7_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_7_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_7_CNT,F
;(1)
BZ
DATA_7_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_7_CHK
;(2)
DATA_7_CHK_END
DECFSZ
DATA_BIT_CNT,F
GOTO
DATA_8_CHK
GOTO
DATA_ALL_CHK_END
DATA_8_CHK
;DATA_8_CHK - DATA_81bit_END(30)
NOP
NOP
RLCF
DATA_8,F ;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
DATA_8_L
;(2)
DATA_8_H
NOP
;(1)
BSF
DATA_8,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_8_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
DATA_8_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_8_CNT,F
;(1)
BZ
DATA_8_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_8_CHK
;(2)
DATA_8_L
BCF
DATA_8,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATA_8_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
DATA_8_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
DATA_8_CNT,F
;(1)
BZ
DATA_8_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
DATA_8_CHK
;(2)
DATA_8_CHK_END
NOP
GOTO
DATA_ALL_CHK_END
DATA_ALL_CHK_END
NOP
NOP
NOP
;↑↑↑↑ここまででデーターの取り出し終了↑↑↑↑
;******************************************************************
;ＣＲＣの検出
;******************************************************************
CRC_DATA_1_CHK
;CRC_DATA_1_CHK - CRC_DATA_11bit_END(30)
NOP
NOP
RLCF
CRC_DATA_1,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
CRC_DATA_1_L
;(2)
CRC_DATA_1_H
NOP
;(1)
BSF
CRC_DATA_1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_DATA_1_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
CRC_DATA_1_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
CRC_DATA_1_CNT,F
;(1)
BZ
CRC_DATA_1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
CRC_DATA_1_CHK
;(2)
CRC_DATA_1_L
BCF
CRC_DATA_1,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_DATA_1_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
CRC_DATA_1_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
CRC_DATA_1_CNT,F
;(1)
BZ
CRC_DATA_1_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
CRC_DATA_1_CHK
;(2)
CRC_DATA_1_CHK_END
NOP
GOTO
CRC_DATA_2_CHK
CRC_DATA_2_CHK
;CRC_DATA_2_CHK - CRC_DATA_21bit_END(30)
NOP
NOP
RLCF
CRC_DATA_2,F
;(1)左に順送り
BTFSS
PORTC,4
;(1) skip(2)
GOTO
CRC_DATA_2_L
;(2)
CRC_DATA_2_H
NOP
;(1)
BSF
CRC_DATA_2,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_DATA_2_H_1bit_END
;(2)
CALL
H_5bit_
;
(2)
CRC_DATA_2_H_1bit_END
CALL
CYCLE_12_H
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
CRC_DATA_2_CNT,F
;(1)
BZ
CRC_DATA_2_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
CRC_DATA_2_CHK
;(2)
CRC_DATA_2_L
BCF
CRC_DATA_2,0
;(1)
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_DATA_2_L_1bit_END
;(2)
CALL
L_5bit_
;
(2)
CRC_DATA_2_L_1bit_END
CALL
CYCLE_12_L
;(15)CYCLE_12+CALL(2)=15CYCLE
DECF
CRC_DATA_2_CNT,F
;(1)
BZ
CRC_DATA_2_CHK_END
;(1) GOTO(2)
NOP
NOP
GOTO
CRC_DATA_2_CHK
;(2)
CRC_DATA_2_CHK_END
;↑↑↑↑ここまででCRCの取り出し終了↑↑↑↑
;******************************************************************

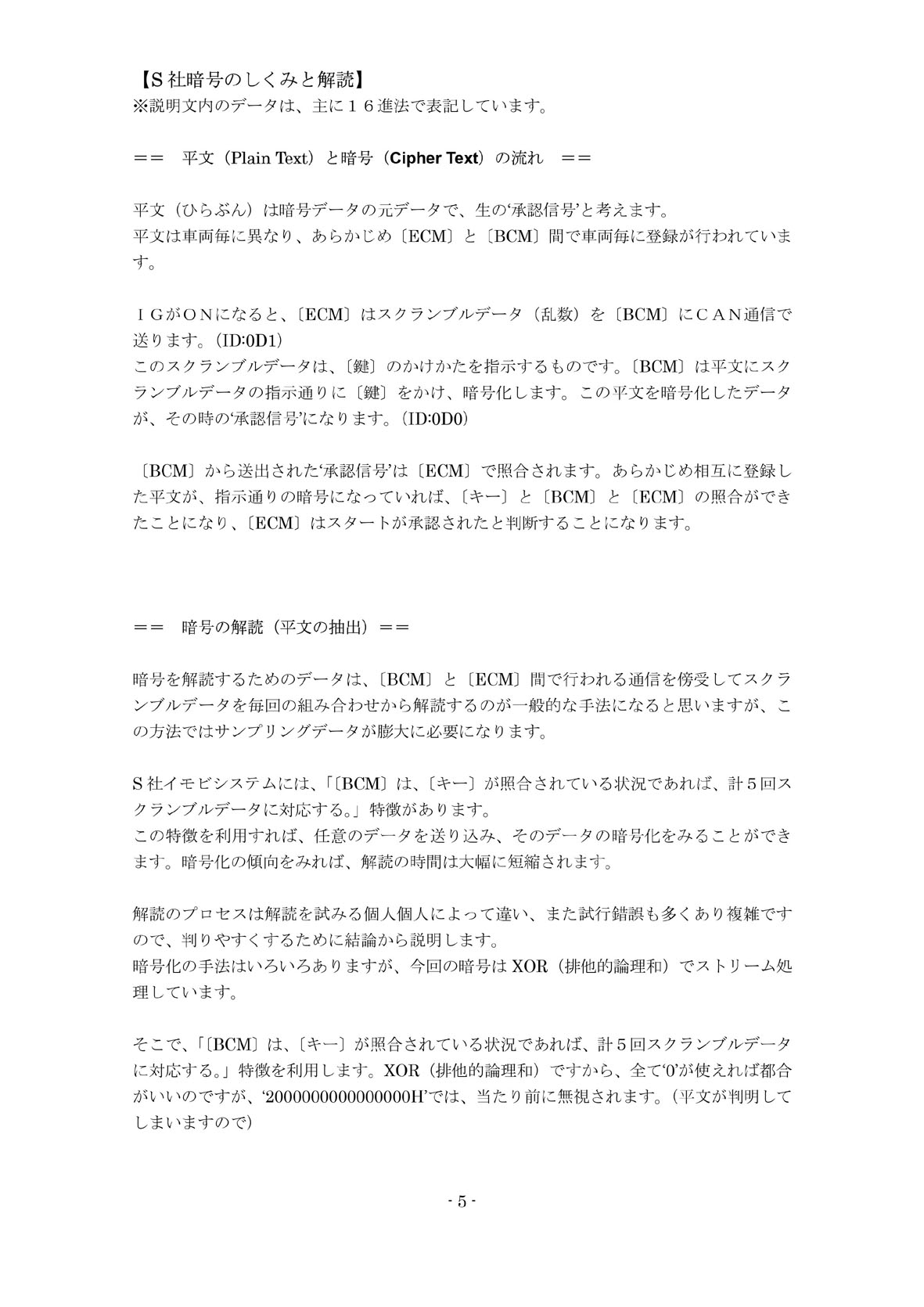

;解除データーの生成
;******************************************************************
KYE_DATA_MAKE
MOVLW
H'D1'
;(1)
質問
SUBWF
ID_LOW,W
;(1)
BTFSC
STATUS,Z
;(2)
GOTO
_D1_DATA_CHK
BTFSC
SADOU_PORT,0
GOTO
EOF_CHK_0
;平文の算出が終わっていれば'D0'はもう必要ない
MOVLW
H'D0'
;(1) 回答
SUBWF
ID_LOW,W
;(1)
BTFSC
STATUS,Z
;(2)
GOTO
_D0_DATA_CHK
GOTO
EOF_CHK_0
_D1_DATA_CHK
;質問がきたら DATA_X を DATA_X_0 に代入する。
INCF
_0D1_CNT,F
MOVF
DATA_1,W
MOVWF
DATA_1_0
MOVF
DATA_2,W
MOVWF
DATA_2_0
MOVF
DATA_3,W
MOVWF
DATA_3_0
MOVF
DATA_4,W
MOVWF
DATA_4_0
MOVF
DATA_5,W
MOVWF
DATA_5_0
MOVF
DATA_6,W
MOVWF
DATA_6_0
MOVF
DATA_7,W
MOVWF
DATA_7_0
MOVF
DATA_8,W
MOVWF
DATA_8_0
BTFSC
SADOU_PORT,0
GOTO
_plaintext
;平文の算出が終わっていれば_plaintext
にいく
GOTO
EOF_CHK_0
_D0_DATA_CHK
MOVF
DATA_1,W
MOVWF
DATAX_1_0
MOVF
DATA_2,W
MOVWF
DATAX_2_0
MOVF
DATA_3,W
MOVWF
DATAX_3_0
MOVF
DATA_4,W
MOVWF
DATAX_4_0
MOVF
DATA_5,W
MOVWF
DATAX_5_0
MOVF
DATA_6,W
MOVWF
DATAX_6_0
MOVF
DATA_7,W
MOVWF
DATAX_7_0
MOVF
DATA_8,W
MOVWF
DATAX_8_0
GOTO
DATA_conversion

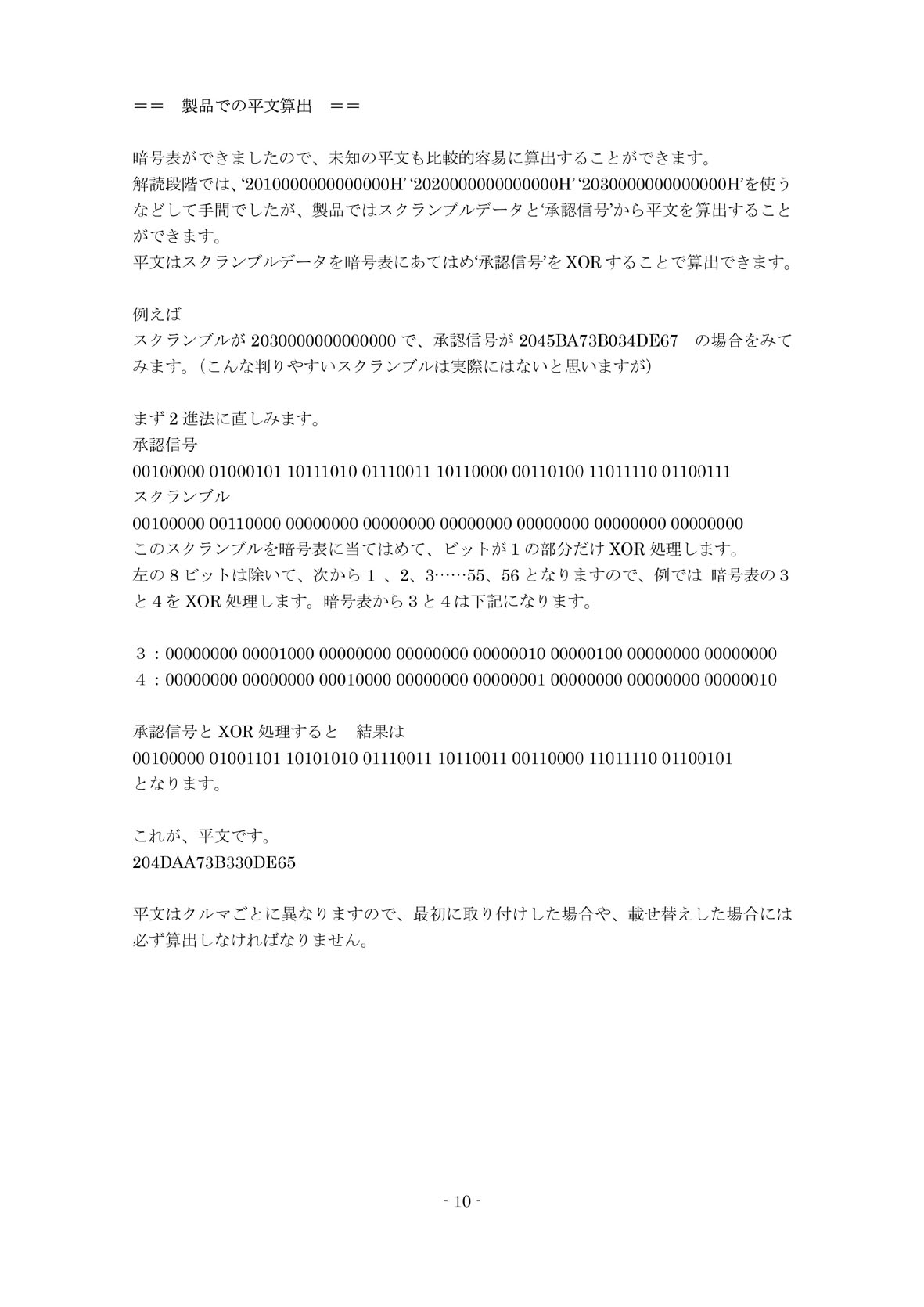

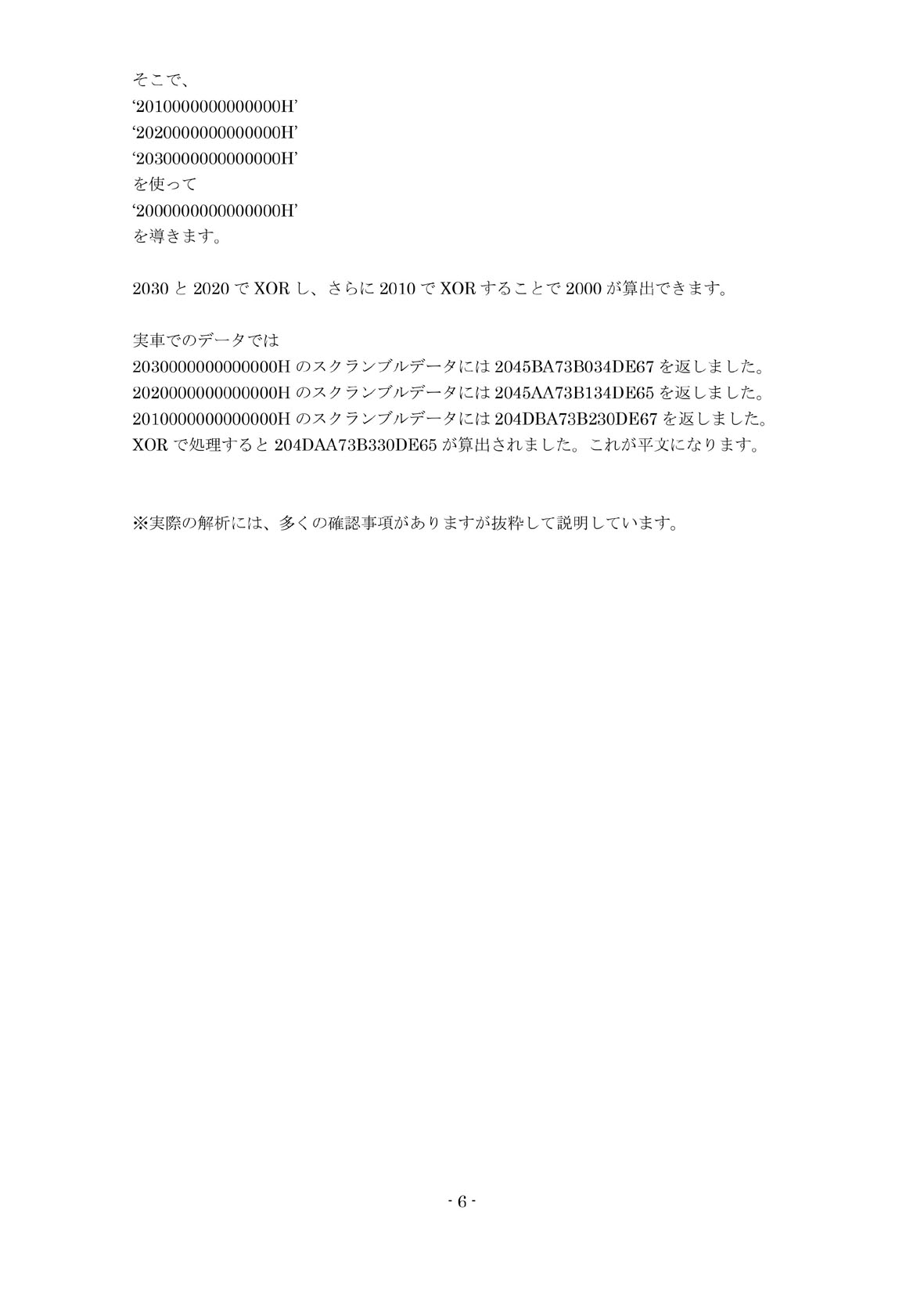

_plaintext
MOVF
plaintext_DATA_1,W
MOVWF
DATAX_1_0
MOVF
plaintext_DATA_2,W
MOVWF
DATAX_2_0
MOVF
plaintext_DATA_3,W
MOVWF
DATAX_3_0
MOVF
plaintext_DATA_4,W
MOVWF
DATAX_4_0
MOVF
plaintext_DATA_5,W
MOVWF
DATAX_5_0
MOVF
plaintext_DATA_6,W
MOVWF
DATAX_6_0
MOVF
plaintext_DATA_7,W
MOVWF
DATAX_7_0
MOVF
plaintext_DATA_8,W
MOVWF
DATAX_8_0

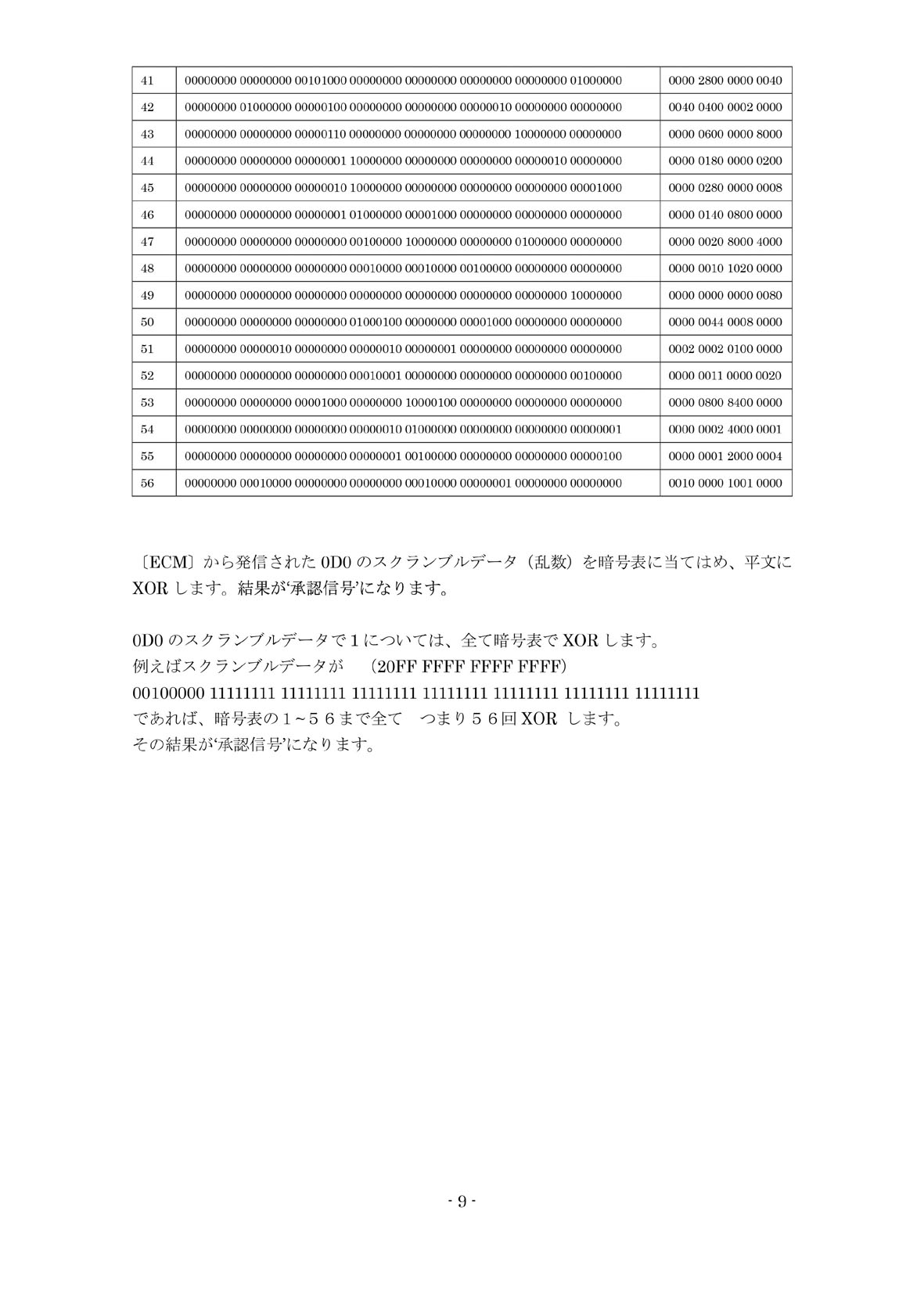

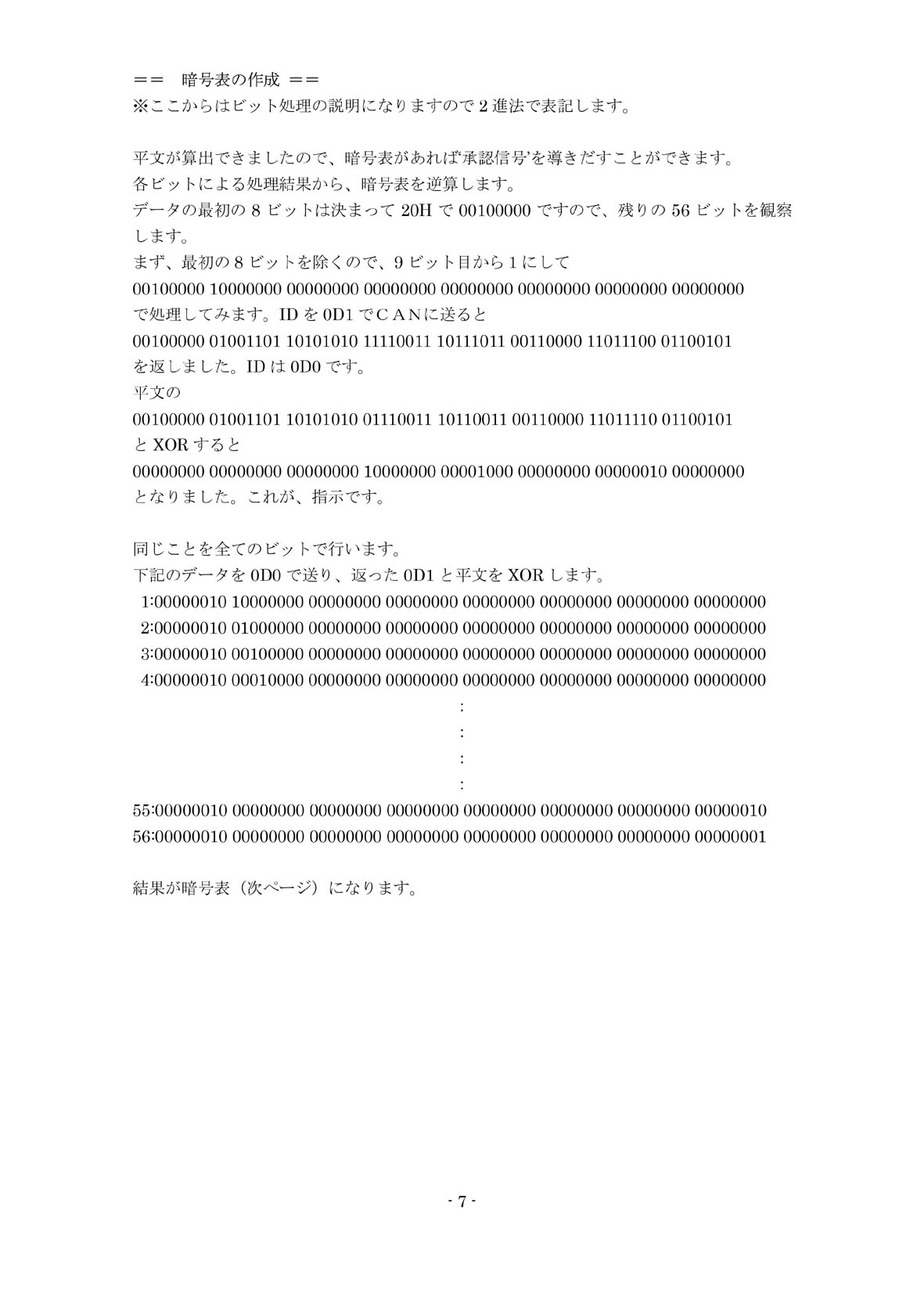

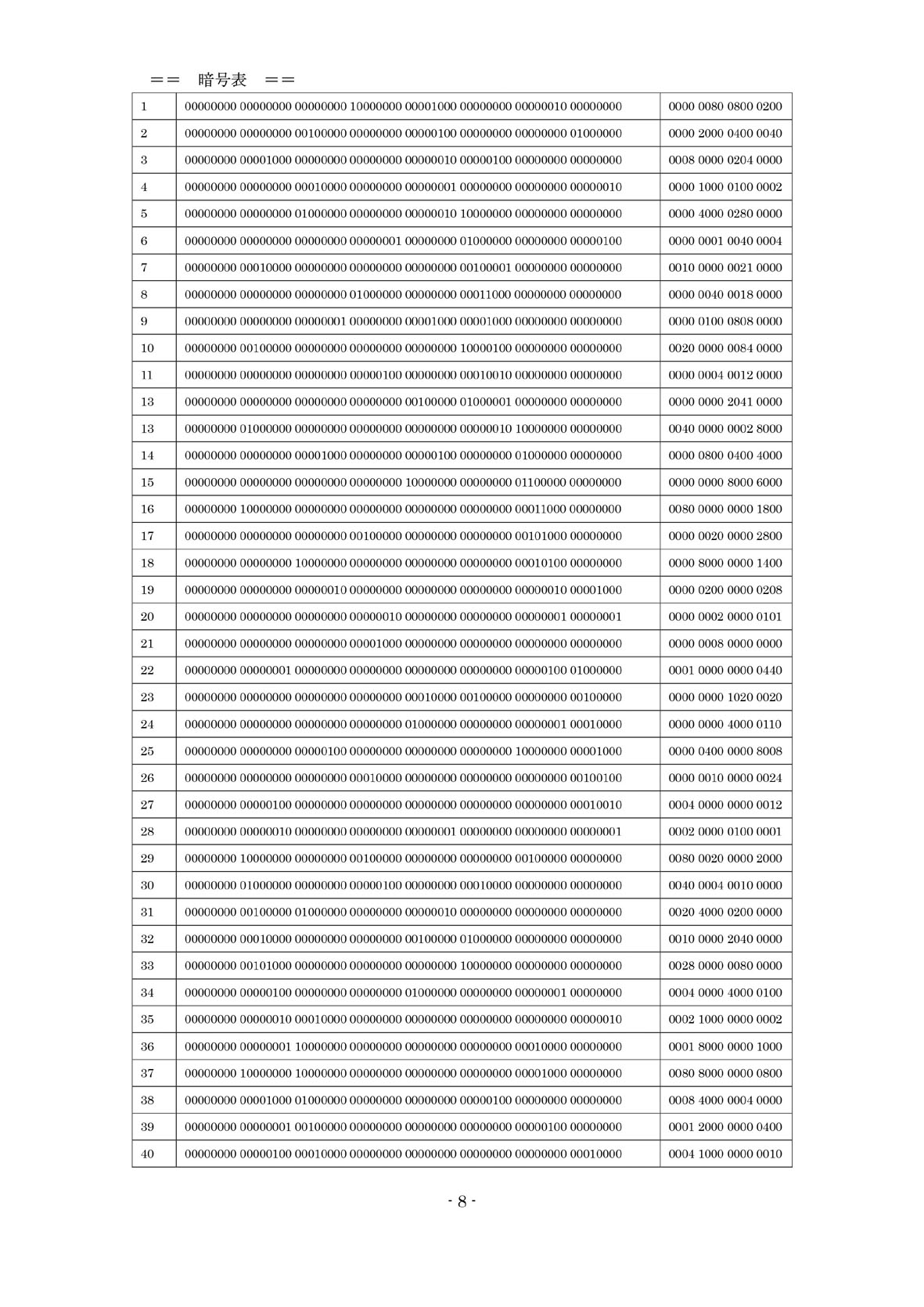

DATA_conversion
BTFSC
DATA_2_0,7
CALL
_2N1
BTFSC
DATA_2_0,6
CALL
_2N2
BTFSC
DATA_2_0,5
CALL
_2N3
BTFSC
DATA_2_0,4
CALL
_2N4
BTFSC
DATA_2_0,3
CALL
_2N5
BTFSC
DATA_2_0,2
CALL
_2N6
BTFSC
DATA_2_0,1
CALL
_2N7
BTFSC
DATA_2_0,0
CALL
_2N8
BTFSC
DATA_3_0,7
CALL
_3N1
BTFSC
DATA_3_0,6
CALL
_3N2
BTFSC
DATA_3_0,5
CALL
_3N3
BTFSC
DATA_3_0,4
CALL
_3N4
BTFSC
DATA_3_0,3
CALL
_3N5
BTFSC
DATA_3_0,2
CALL
_3N6
BTFSC
DATA_3_0,1
CALL
_3N7
BTFSC
DATA_3_0,0
CALL
_3N8
BTFSC
DATA_4_0,7
CALL
_4N1
BTFSC
DATA_4_0,6
CALL
_4N2
BTFSC
DATA_4_0,5
CALL
_4N3
BTFSC
DATA_4_0,4
CALL
_4N4
BTFSC
DATA_4_0,3
CALL
_4N5
BTFSC
DATA_4_0,2
CALL
_4N6
BTFSC
DATA_4_0,1
CALL
_4N7
BTFSC
DATA_4_0,0
CALL
_4N8
BTFSC
DATA_5_0,7
CALL
_5N1
BTFSC
DATA_5_0,6
CALL
_5N2
BTFSC
DATA_5_0,5
CALL
_5N3
BTFSC
DATA_5_0,4
CALL
_5N4
BTFSC
DATA_5_0,3
CALL
_5N5
BTFSC
DATA_5_0,2
CALL
_5N6
BTFSC
DATA_5_0,1
CALL
_5N7
BTFSC
DATA_5_0,0
CALL
_5N8
BTFSC
DATA_6_0,7
CALL
_6N1
BTFSC
DATA_6_0,6
CALL
_6N2
BTFSC
DATA_6_0,5
CALL
_6N3
BTFSC
DATA_6_0,4
CALL
_6N4
BTFSC
DATA_6_0,3
CALL
_6N5
BTFSC
DATA_6_0,2
CALL
_6N6
BTFSC
DATA_6_0,1
CALL
_6N7
BTFSC
DATA_6_0,0
CALL
_6N8
BTFSC
DATA_7_0,7
CALL
_7N1
BTFSC
DATA_7_0,6
CALL
_7N2
BTFSC
DATA_7_0,5
CALL
_7N3
BTFSC
DATA_7_0,4
CALL
_7N4
BTFSC
DATA_7_0,3
CALL
_7N5
BTFSC
DATA_7_0,2
CALL
_7N6
BTFSC
DATA_7_0,1
CALL
_7N7
BTFSC
DATA_7_0,0
CALL
_7N8
BTFSC
DATA_8_0,7
CALL
_8N1
BTFSC
DATA_8_0,6
CALL
_8N2
BTFSC
DATA_8_0,5
CALL
_8N3
BTFSC
DATA_8_0,4
CALL
_8N4
BTFSC
DATA_8_0,3
CALL
_8N5
BTFSC
DATA_8_0,2
CALL
_8N6
BTFSC
DATA_8_0,1
CALL
_8N7
BTFSC
DATA_8_0,0
CALL
_8N8
BTFSC
SADOU_PORT,0
GOTO
KYE_DATA_MAKE_END
MOVF
DATAX_1_0,W
MOVWF
plaintext_DATA_1
MOVF
DATAX_2_0,W
MOVWF
plaintext_DATA_2
MOVF
DATAX_3_0,W
MOVWF
plaintext_DATA_3
MOVF
DATAX_4_0,W
MOVWF
plaintext_DATA_4
MOVF
DATAX_5_0,W
MOVWF
plaintext_DATA_5
MOVF
DATAX_6_0,W
MOVWF
plaintext_DATA_6
MOVF
DATAX_7_0,W
MOVWF
plaintext_DATA_7
MOVF
DATAX_8_0,W
MOVWF
plaintext_DATA_8
BSF
SADOU_PORT,0
BCF
PORTB,7
;LED
MOVLW
H'00'
MOVWF
EEADR_CNT
MOVF
SADOU_PORT,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'01'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_1,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'02'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_2,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'03'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_3,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'04'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_4,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'05'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_5,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'06'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_6,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'07'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_7,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'08'
MOVWF
EEADR_CNT
MOVF
plaintext_DATA_8,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
GOTO
Main
KYE_DATA_MAKE_END
;↑↑↑↑ここまでで平文データー／解除データの作成終了↑↑↑↑
;******************************************************************
;ＣＲＣデーターの生成
;******************************************************************
CRC_DATA_MAKE
CLRF
CRC_L
CLRF
CRC_H
CLRF
CRC_L_X
CLRF
CRC_H_X
;_SOF
CALL
IN_L
;_0
CALL
IN_L
CALL
IN_L
CALL
IN_L
;_D
CALL
IN_H
CALL
IN_H
CALL
IN_L
CALL
IN_H
;_0
CALL
IN_L
CALL
IN_L
CALL
IN_L
CALL
IN_L
;_RRR
CALL
IN_L
CALL
IN_L
CALL
IN_L
;_1000
CALL
IN_H
CALL
IN_L
CALL
IN_L
CALL
IN_L
DATAX_1_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_1_0,W
MOVWF
DATA_X
DATAX_1_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_1_CRC_LP
DATAX_2_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_2_0,W
MOVWF
DATA_X
DATAX_2_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_2_CRC_LP
DATAX_3_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_3_0,W
MOVWF
DATA_X
DATAX_3_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_3_CRC_LP
DATAX_4_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_4_0,W
MOVWF
DATA_X
DATAX_4_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_4_CRC_LP
DATAX_5_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_5_0,W
MOVWF
DATA_X
DATAX_5_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_5_CRC_LP
DATAX_6_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_6_0,W
MOVWF
DATA_X
DATAX_6_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_6_CRC_LP
DATAX_7_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_7_0,W
MOVWF
DATA_X
DATAX_7_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_7_CRC_LP
DATAX_8_CRC
MOVLW
D'8'
MOVWF
DATA_BIT_CNT
MOVF
DATAX_8_0,W
MOVWF
DATA_X
DATAX_8_CRC_LP
BTFSC
DATA_X,7
CALL
IN_H
BTFSS
DATA_X,7
CALL
IN_L
RLCF
DATA_X,F
DECFSZ
DATA_BIT_CNT,F
GOTO
DATAX_8_CRC_LP
CRC_MAKE_END
;↑↑↑↑ここまででCRCの作成終了↑↑↑↑
GOTO
DATA_Processing_CHK
;******************************************************************
;データーの再現
;******************************************************************
DATA_Processing_CHK
MOVLW
D'50'
SUBWF
_0D1_CNT,W
;50回を越えたらプログラム停止
BTFSC
STATUS,Z
GOTO
FULL_CNT_STOP
DATA_Processing
;解除キーの送出
MOVLW
D'5'
;
MOVWF
H_5bit_CHK
;
MOVLW
D'2'
;
MOVWF
L_5bit_CHK
;
MOVLW
D'8'
;
MOVWF
DATA_1_CNT
MOVWF
DATA_2_CNT
MOVWF
DATA_3_CNT
MOVWF
DATA_4_CNT
MOVWF
DATA_5_CNT
MOVWF
DATA_6_CNT
MOVWF
DATA_7_CNT
MOVWF
DATA_8_CNT
MOVWF
CRC_DATA_1_CNT
MOVWF
CRC_DATA_2_CNT
MOVF
DATAX_1_0,W
MOVWF
Reproduce_DATA1
MOVF
DATAX_2_0,W
MOVWF
Reproduce_DATA2
MOVF
DATAX_3_0,W
MOVWF
Reproduce_DATA3
MOVF
DATAX_4_0,W
MOVWF
Reproduce_DATA4
MOVF
DATAX_5_0,W
MOVWF
Reproduce_DATA5
MOVF
DATAX_6_0,W
MOVWF
Reproduce_DATA6
MOVF
DATAX_7_0,W
MOVWF
Reproduce_DATA7
MOVF
DATAX_8_0,W
MOVWF
Reproduce_DATA8
MOVF
CRC_H,W
MOVWF
Reproduce_CRC_H
MOVF
CRC_L,W
MOVWF
Reproduce_CRC_L
EOF_CHK_MATI_LP
BTFSC
PORTC,4
;(2)
GOTO
EOF_CHK_MATI_LP
EOF_CHK_B
MOVLW
D'12'
;終了の連続ビット
MOVWF
BIT_CNT
EOF_CHK_B_LP
BTFSS
PORTC,4
;(2)
GOTO
EOF_CHK_B_LP
CALL
CYCLE_29
;(12)CYCLE_10+CALL(2)=12CYCLE
EOF_CHK_B2
CALL
CYCLE_27
;(12)CYCLE_25+CALL(2)=27CYCLE
BTFSS
PORTC,4
;(2)
GOTO
EOF_CHK_B
DECFSZ
BIT_CNT,F
;(1)
GOTO
EOF_CHK_B2
;(2)
;↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓↓ここから↓↓↓↓↓↓↓↓↓↓↓↓↓
;_SOF
BCF
PORTC,5
CALL
CYCLE_29
;_0
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
;_D
BSF
PORTC,5
CALL
CYCLE_29
BSF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BSF
PORTC,5
CALL
CYCLE_29
;_0
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
;_RRR
BC
PORTC,5
CALL
CYCLE_29
BSF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
;_1000
BSF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_26
DATAX_1_Reproduce
BTFSS
Reproduce_DATA1,7
GOTO
DATAX_1_L
DATAX_1_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_1_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_1_1bit_END
;(2)
DATAX_1_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_1_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_1_1bit_END
;(2)
DATAX_1_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA1,F
;(1)左に順送り
DECFSZ
DATA_1_CNT,F
;(1) skip(2)
GOTO
DATAX_1_Reproduce
;(2)
DATAX_2_Reproduce
BTFSS
Reproduce_DATA2,7
GOTO
DATAX_2_L
DATAX_2_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_2_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_2_1bit_END
;(2)
DATAX_2_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_2_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_2_1bit_END
;(2)
DATAX_2_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA2,F
;(1)左に順送り
DECFSZ
DATA_2_CNT,F
;(1) skip(2)
GOTO
DATAX_2_Reproduce
;(2)
DATAX_3_Reproduce
BTFSS
Reproduce_DATA3,7
GOTO
DATAX_3_L
DATAX_3_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_3_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_3_1bit_END
;(2)
DATAX_3_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_3_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_3_1bit_END
;(2)
DATAX_3_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA3,F
;(1)左に順送り
DECFSZ
DATA_3_CNT,F
;(1) skip(2)
GOTO
DATAX_3_Reproduce
;(2)
DATAX_4_Reproduce
BTFSS
Reproduce_DATA4,7
GOTO
DATAX_4_L
DATAX_4_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_4_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_4_1bit_END
;(2)
DATAX_4_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_4_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_4_1bit_END
;(2)
DATAX_4_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA4,F
;(1)左に順送り
DECFSZ
DATA_4_CNT,F
;(1) skip(2)
GOTO
DATAX_4_Reproduce
;(2)
DATAX_5_Reproduce
BTFSS
Reproduce_DATA5,7
GOTO
DATAX_5_L
DATAX_5_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_5_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_5_1bit_END
;(2)
DATAX_5_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_5_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_5_1bit_END
;(2)
DATAX_5_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA5,F
;(1)左に順送り
DECFSZ
DATA_5_CNT,F
;(1) skip(2)
GOTO
DATAX_5_Reproduce
;(2)
DATAX_6_Reproduce
BTFSS
Reproduce_DATA6,7
GOTO
DATAX_6_L
DATAX_6_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_6_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_6_1bit_END
;(2)
DATAX_6_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_6_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_6_1bit_END
;(2)
DATAX_6_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA6,F
;(1)左に順送り
DECFSZ
DATA_6_CNT,F
;(1) skip(2)
GOTO
DATAX_6_Reproduce
;(2)
DATAX_7_Reproduce
BTFSS
Reproduce_DATA7,7
GOTO
DATAX_7_L
DATAX_7_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_7_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_7_1bit_END
;(2)
DATAX_7_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_7_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_7_1bit_END
;(2)
DATAX_7_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA7,F
;(1)左に順送り
DECFSZ
DATA_7_CNT,F
;(1) skip(2)
GOTO
DATAX_7_Reproduce
;(2)
DATAX_8_Reproduce
BTFSS
Reproduce_DATA8,7
GOTO
DATAX_8_L
DATAX_8_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_8_8bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
DATAX_8_8bit_END
;(2)
DATAX_8_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
DATAX_8_8bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
DATAX_8_8bit_END
;(2)
DATAX_8_8bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_DATA8,F
;(1)左に順送り
DECFSZ
DATA_8_CNT,F
;(1) skip(2)
GOTO
DATAX_8_Reproduce
;(2)
CRC_H_Reproduce
BTFSS
Reproduce_CRC_H,7
GOTO
CRC_H_L
CRC_H_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_H_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
CRC_H_1bit_END
;(2)
CRC_H_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_H_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
CRC_H_1bit_END
;(2)
CRC_H_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_CRC_H,F
;(1)左に順送り
DECFSZ
CRC_DATA_1_CNT,F
;(1) skip(2)
GOTO
CRC_H_Reproduce
;(2)
CRC_L_Reproduce
BTFSS
Reproduce_CRC_L,7
GOTO
CRC_L_L
CRC_L_H
NOP
BSF
PORTC,5
;(1)
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
DECFSZ
H_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_L_1bit_END
;(2)
CALL
H_5bit_Reproduce
;(2)
GOTO
CRC_L_1bit_END
;(2)
CRC_L_L
BCF
PORTC,5
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
DECFSZ
L_5bit_CHK,F
;(1) skip(2)
GOTO
CRC_L_1bit_END
;(2)
CALL
L_5bit_Reproduce
;(2)
GOTO
CRC_L_1bit_END
;(2)
CRC_L_1bit_END
CALL
CYCLE_17
;
RLCF
Reproduce_CRC_L,F
;(1)左に順送り
DECFSZ
CRC_DATA_2_CNT,F
;(1) skip(2)
GOTO
CRC_L_Reproduce
;(2)
;******************************************************************
BSF
PORTB,7
;LED
CALL
TIME20M
BCF
PORTB,7
;LED
INCF
ID_0D_CNT,F
MOVLW
D'05'
SUBWF
ID_0D_CNT,W
BTFSC
STATUS,Z
GOTO
DUMY_DO
GOTO
EOF_CHK_0
;******************************************************************
;解除キー作成処理
;******************************************************************
_2N1
;0000 0080 0800 0200
MOVLW
80H
XORWF
DATAX_4_0,F
MOVLW
08H
XORWF
DATAX_5_0,F
MOVLW
02H
XORWF
DATAX_7_0,F
RETURN
_2N2
;0000 2000 0400 0040
MOVLW
20H
XORWF
DATAX_3_0,F
MOVLW
04H
XORWF
DATAX_5_0,F
MOVLW
40H
XORWF
DATAX_8_0,F
RETURN
_2N3
;0008 0000 0204 0000
MOVLW
08H
XORWF
DATAX_2_0,F
MOVLW
02H
XORWF
DATAX_5_0,F
MOVLW
04H
XORWF
DATAX_6_0,F
RETURN
_2N4
;0000 1000 0100 0002
MOVLW
10H
XORWF
DATAX_3_0,F
MOVLW
01H
XORWF
DATAX_5_0,F
MOVLW
02H
XORWF
DATAX_8_0,F
RETURN
_2N5
;0000 4000 0280 0000
MOVLW
40H
XORWF
DATAX_3_0,F
MOVLW
02H
XORWF
DATAX_5_0,F
MOVLW
80H
XORWF
DATAX_6_0,F
RETURN
_2N6
;0000 0001 0040 0004
MOVLW
01H
XORWF
DATAX_4_0,F
MOVLW
40H
XORWF
DATAX_6_0,F
MOVLW
04H
XORWF
DATAX_8_0,F
RETURN
_2N7
;0010 0000 0021 0000
MOVLW
10H
XORWF
DATAX_2_0,F
MOVLW
21H
XORWF
DATAX_6_0,F
RETURN
_2N8
;0000 0040 0018 0000
MOVLW
40H
XORWF
DATAX_4_0,F
MOVLW
18H
XORWF
DATAX_6_0,F
RETURN
_3N1
;0000 0100 0808 0000
MOVLW
01H
XORWF
DATAX_3_0,F
MOVLW
08H
XORWF
DATAX_5_0,F
MOVLW
08H
XORWF
DATAX_6_0,F
RETURN
_3N2
;0020 0000 0084 0000
MOVLW
20H
XORWF
DATAX_2_0,F
MOVLW
84H
XORWF
DATAX_6_0,F
RETURN
_3N3
;0000 0004 0012 0000
MOVLW
04H
XORWF
DATAX_4_0,F
MOVLW
12H
XORWF
DATAX_6_0,F
RETURN
_3N4
;0000 0000 2041 0000
MOVLW
20H
XORWF
DATAX_5_0,F
MOVLW
41H
XORWF
DATAX_6_0,F
RETURN
_3N5
;0040 0000 0002 8000
MOVLW
40H
XORWF
DATAX_2_0,F
MOVLW
02H
XORWF
DATAX_6_0,F
MOVLW
80H
XORWF
DATAX_7_0,F
RETURN
_3N6
;0000 0800 0400 4000
MOVLW
08H
XORWF
DATAX_3_0,F
MOVLW
04H
XORWF
DATAX_5_0,F
MOVLW
40H
XORWF
DATAX_7_0,F
RETURN
_3N7
;0000 0000 8000 6000
MOVLW
80H
XORWF
DATAX_5_0,F
MOVLW
60H
XORWF
DATAX_7_0,F
RETURN
_3N8
;0080 0000 0000 1800
MOVLW
80H
XORWF
DATAX_2_0,F
MOVLW
18H
XORWF
DATAX_7_0,F
RETURN
_4N1
;0000 0020 0000 2800
MOVLW
20H
XORWF
DATAX_4_0,F
MOVLW
28H
XORWF
DATAX_7_0,F
RETURN
_4N2
;0000 8000 0000 1400
MOVLW
80H
XORWF
DATAX_3_0,F
MOVLW
14H
XORWF
DATAX_7_0,F
RETURN
_4N3
;0000 0200 0000 0208
MOVLW
02H
XORWF
DATAX_3_0,F
MOVLW
02H
XORWF
DATAX_7_0,F
MOVLW
08H
XORWF
DATAX_8_0,F
RETURN
_4N4
;0000 0002 0000 0101
MOVLW
02H
XORWF
DATAX_4_0,F
MOVLW
01H
XORWF
DATAX_7_0,F
MOVLW
01H
XORWF
DATAX_8_0,F
RETURN
_4N5
;0000 0008 0000 0000
MOVLW
08H
XORWF
DATAX_4_0,F
RETURN
_4N6
;0001 0000 0000 0440
MOVLW
01H
XORWF
DATAX_2_0,F
MOVLW
04H
XORWF
DATAX_7_0,F
MOVLW
40H
XORWF
DATAX_8_0,F
RETURN
_4N7
;0000 0000 1020 0020
MOVLW
10H
XORWF
DATAX_5_0,F
MOVLW
20H
XORWF
DATAX_6_0,F
MOVLW
20H
XORWF
DATAX_8_0,F
RETURN
_4N8
;0000 0000 4000 0110
MOVLW
40H
XORWF
DATAX_5_0,F
MOVLW
01H
XORWF
DATAX_7_0,F
MOVLW
10H
XORWF
DATAX_8_0,F
RETURN
_5N1
;0000 0400 0000 8008
MOVLW
04H
XORWF
DATAX_3_0,F
MOVLW
80H
XORWF
DATAX_7_0,F
MOVLW
08H
XORWF
DATAX_8_0,F
RETURN
_5N2
;0000 0010 0000 0024
MOVLW
10H
XORWF
DATAX_4_0,F
MOVLW
24H
XORWF
DATAX_8_0,F
RETURN
_5N3
;0004 0000 0000 0012
MOVLW
04H
XORWF
DATAX_2_0,F
MOVLW
12H
XORWF
DATAX_8_0,F
RETURN
_5N4
;0002 0000 0100 0001
MOVLW
02H
XORWF
DATAX_2_0,F
MOVLW
01H
XORWF
DATAX_5_0,F
MOVLW
01H
XORWF
DATAX_8_0,F
RETURN
_5N5
;0080 0020 0000 2000
MOVLW
80H
XORWF
DATAX_2_0,F
MOVLW
20H
XORWF
DATAX_4_0,F
MOVLW
20H
XORWF
DATAX_7_0,F
RETURN
_5N6
;0040 0004 0010 0000
MOVLW
40H
XORWF
DATAX_2_0,F
MOVLW
04H
XORWF
DATAX_4_0,F
MOVLW
10H
XORWF
DATAX_6_0,F
RETURN
_5N7
;0020 4000 0200 0000
MOVLW
20H
XORWF
DATAX_2_0,F
MOVLW
40H
XORWF
DATAX_3_0,F
MOVLW
02H
XORWF
DATAX_5_0,F
RETURN
_5N8
;0010 0000 2040 0000
MOVLW
10H
XORWF
DATAX_2_0,F
MOVLW
20H
XORWF
DATAX_5_0,F
MOVLW
40H
XORWF
DATAX_6_0,F
RETURN
_6N1
;0028 0000 0080 0000
MOVLW
28H
XORWF
DATAX_2_0,F
MOVLW
80H
XORWF
DATAX_6_0,F
RETURN
_6N2
;0004 0000 4000 0100
MOVLW
04H
XORWF
DATAX_2_0,F
MOVLW
40H
XORWF
DATAX_5_0,F
MOVLW
01H
XORWF
DATAX_7_0,F
RETURN
_6N3
;0002 1000 0000 0002
MOVLW
02H
XORWF
DATAX_2_0,F
MOVLW
10H
XORWF
DATAX_3_0,F
MOVLW
02H
XORWF
DATAX_8_0,F
RETURN
_6N4
;0001 8000 0000 1000
MOVLW
01H
XORWF
DATAX_2_0,F
MOVLW
80H
XORWF
DATAX_3_0,F
MOVLW
10H
XORWF
DATAX_7_0,F
RETURN
_6N5
;0080 8000 0000 0800
MOVLW
80H
XORWF
DATAX_2_0,F
MOVLW
80H
XORWF
DATAX_3_0,F
MOVLW
08H
XORWF
DATAX_7_0,F
RETURN
_6N6
;0008 4000 0004 0000
MOVLW
08H
XORWF
DATAX_2_0,F
MOVLW
40H
XORWF
DATAX_3_0,F
MOVLW
04H
XORWF
DATAX_6_0,F
RETURN
_6N7
;0001 2000 0000 0400
MOVLW
01H
XORWF
DATAX_2_0,F
MOVLW
20H
XORWF
DATAX_3_0,F
MOVLW
04H
XORWF
DATAX_7_0,F
RETURN
_6N8
;0004 1000 0000 0010
MOVLW
04H
XORWF
DATAX_2_0,F
MOVLW
10H
XORWF
DATAX_3_0,F
MOVLW
10H
XORWF
DATAX_8_0,F
RETURN
_7N1
;0000 2800 0000 0040
MOVLW
28H
XORWF
DATAX_3_0,F
MOVLW
40H
XORWF
DATAX_8_0,F
RETURN
_7N2
;0040 0400 0002 0000
MOVLW
40H
XORWF
DATAX_2_0,F
MOVLW
04H
XORWF
DATAX_3_0,F
MOVLW
02H
XORWF
DATAX_6_0,F
RETURN
_7N3
;0000 0600 0000 8000
MOVLW
06H
XORWF
DATAX_3_0,F
MOVLW
80H
XORWF
DATAX_7_0,F
RETURN
_7N4
;0000 0180 0000 0200
MOVLW
01H
XORWF
DATAX_3_0,F
MOVLW
80H
XORWF
DATAX_4_0,F
MOVLW
02H
XORWF
DATAX_7_0,F
RETURN
_7N5
;0000 0280 0000 0008
MOVLW
02H
XORWF
DATAX_3_0,F
MOVLW
80H
XORWF
DATAX_4_0,F
MOVLW
08H
XORWF
DATAX_8_0,F
RETURN
_7N6
;0000 0140 0800 0000
MOVLW
01H
XORWF
DATAX_3_0,F
MOVLW
40H
XORWF
DATAX_4_0,F
MOVLW
08H
XORWF
DATAX_5_0,F
RETURN
_7N7
;0000 0020 8000 4000
MOVLW
20H
XORWF
DATAX_4_0,F
MOVLW
80H
XORWF
DATAX_5_0,F
MOVLW
40H
XORWF
DATAX_7_0,F
RETURN
_7N8
;0000 0010 1020 0000
MOVLW
10H
XORWF
DATAX_4_0,F
MOVLW
10H
XORWF
DATAX_5_0,F
MOVLW
20H
XORWF
DATAX_6_0,F
RETURN
_8N1
;0000 0000 0000 0080
MOVLW
80H
XORWF
DATAX_8_0,F
RETURN
_8N2
;0000 0044 0008 0000
MOVLW
44H
XORWF
DATAX_4_0,F
MOVLW
08H
XORWF
DATAX_6_0,F
RETURN
_8N3
;0002 0002 0100 0000
MOVLW
02H
XORWF
DATAX_2_0,F
MOVLW
02H
XORWF
DATAX_4_0,F
MOVLW
01H
XORWF
DATAX_5_0,F
RETURN
_8N4
;0000 0011 0000 0020
MOVLW
11H
XORWF
DATAX_4_0,F
MOVLW
20H
XORWF
DATAX_8_0,F
RETURN
_8N5
;0000 0800 8400 0000
MOVLW
08H
XORWF
DATAX_3_0,F
MOVLW
84H
XORWF
DATAX_5_0,F
RETURN
_8N6
;0000 0002 4000 0001
MOVLW
02H
XORWF
DATAX_4_0,F
MOVLW
40H
XORWF
DATAX_5_0,F
MOVLW
01H
XORWF
DATAX_8_0,F
RETURN
_8N7
;0000 0001 2000 0004
MOVLW
01H
XORWF
DATAX_4_0,F
MOVLW
20H
XORWF
DATAX_5_0,F
MOVLW
04H
XORWF
DATAX_8_0,F
RETURN
_8N8
;0010 0000 1001 0000
MOVLW
10H
XORWF
DATAX_2_0,F
MOVLW
10H
XORWF
DATAX_5_0,F
MOVLW
01H
XORWF
DATAX_6_0,F
RETURN
;******************************************************************
;CRC作成処理
;******************************************************************
;CRCNXT = NXTBIT
EXOR CRC_RG(14)
;14ビット目をXORした結果をCRCNXTとする
;CRC_RG(14:1) =
CRC_RG(13:0); // shift left by
;従来のCRCを左にシフトする
;CRC_RG(0) = 0; // 1
position
；0ビット目はクリア
;IF CRCNXT THEN
;CRCNXTが真（１）であればCRCを4599でXORする
;CRC_RG(14:0) =
CRC_RG(14:0) EXOR (4599hex);
;ENDIF
IN_L
MOVF
CRC_H,W
MOVWF
CRC_H_X
;１ビットだけXORしたいので仮に代入する
MOVLW
B'00000000'
XORWF
CRC_H_X,F
BTFSC
CRC_H_X,7
GOTO
XOR_H
;結果によって
XOR_H XOR_L へ進む
GOTO
XOR_L
IN_H
MOVF
CRC_H,W
MOVWF
CRC_H_X
MOVLW
B'10000000'
XORWF
CRC_H_X,F
BTFSC
CRC_H_X,7
GOTO
XOR_H
GOTO
XOR_L
XOR_L
;偽（０）だったのでシフトして0ビット（CRC_L,1）をクリアだけをする
RLCF
CRC_H,F
RLCF
CRC_L,F
BCF
CRC_H,0
BTFSC
STATUS,C
BSF
CRC_H,0
BCF
CRC_L,1
BSF
CRC_L,0
;ドミナントはエラーフラグなのでリセッシブルにする。
RETURN
XOR_H
;真（１）だったのでシフトして0ビット（CRC_L,1）をクリアしたのち、CRCを4599でXORする
RLCF
CRC_H,F
RLCF
CRC_L,F
BCF
CRC_H,0
BTFSC
STATUS,C
BSF
CRC_H,0
BCF
CRC_L,1
MOVLW
B'10001011'
XORWF
CRC_H,F
MOVLW
B'00110010'
XORWF
CRC_L,F
BSF
CRC_L,0
;ドミナントはエラーフラグなのでリセッシブルにする。
RETURN
;******************************************************************
;スタッフビット再現処理
;******************************************************************
H_5bit_Reproduce
;Hビットが5回連続した時逆位相再現
CALL
CYCLE_19
MOVLW
D'5'
;(1)
MOVWF
H_5bit_CHK
;(1)
MOVLW
D'4'
;(1)
MOVWF
L_5bit_CHK
;(1)
BCF
PORTC,5
NOP
RETURN
;(2)
L_5bit_Reproduce
;Lビットが5回連続した時逆位相再現
CALL
CYCLE_19
MOVLW
D'5'
;(1)
MOVWF
L_5bit_CHK
;(1)
MOVLW
D'4'
;(1)
MOVWF
H_5bit_CHK
;(1)
BSF
PORTC,5
NOP
RETURN
;(2)
;******************************************************************
;記憶消去
;******************************************************************
RE_SET
MOVLW
D'100'
MOVWF
CNT4
SW_CHK_LP
BTFSC
PORTA,3
GOTO
EOF_CHK_0
CALL
TIME20M
DECFSZ
CNT4,F
GOTO
SW_CHK_LP
MOVLW
H'00'
MOVWF
EEADR_CNT
MOVWF
SETTEI_CNT
CALL
EE_WRITE
MOVLW
H'01'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'02'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'03'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'04'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'05'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'06'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'07'
MOVWF
EEADR_CNT
CALL
EE_WRITE
MOVLW
H'08'
MOVWF
EEADR_CNT
CALL
EE_WRITE
GOTO
RE_START
FULL_CNT_STOP
BSF
FULL_END_CNT,0
MOVLW
H'0F'
MOVWF
EEADR_CNT
MOVF
FULL_END_CNT,W ;
MOVWF
SETTEI_CNT
CALL
EE_WRITE
FULL_CNT_STOP_LP
CLRWDT
GOTO
FULL_CNT_STOP_LP
DUMY_1
CLRF
CNT1
DUMY_1_LP
CLRWDT
BSF
PORTC,5
CALL
CYCLE_29
BCF
PORTC,5
CALL
CYCLE_29
DECFSZ
CNT1,F
GOTO
DUMY_1_LP
RETURN
DUMY_DO
BSF
PORTB,7
;LED 消灯していれば記憶している
CLRF
CNT2
DUMY_2_LP
CALL
DUMY_1
DECFSZ
CNT2,F
GOTO
DUMY_2_LP
BCF
PORTB,7
;LED
平文の記憶がまだならLED点灯
DUMY_DO_LP
CLRWDT
NOP
NOP
GOTO
DUMY_DO_LP
END
|
